Magnesium Alloys Ingot

Product Detail

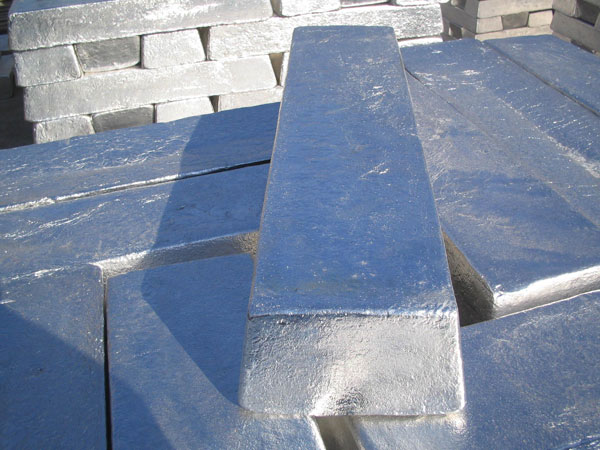

Magnesium Alloys Ingot
Spec	Norm	Chemical Composition (%)
		Al	Zn	Mn	Fe max	Be (ppm)	Si max	Cu max	Ni max
AZ91D	ASTM	8.5-9.5	0.45-0.90	0.17-0.40	0.004	5-15	0.05	0.025	0.001
VW030	ASTM	7.5-8.5	0.30-1.00	0.10-0.30	0.040	5-15	0.20	0.080	0.010
AZ31B	ASTM	2.5-2.9	0.60-0.90	0.20-0.40	0.004	8-13	0.04	0.003	0.002
AM50A	ASTM	4.5-5.3	0.10 max	0.28-0.50	0.004	5-15	0.05	0.008	0.001
AM60B	ASTM	5.4-6.4 max	0.20 max	0.26-0.50	0.004	5-15	0.05	0.008	0.001

Dimension	Weight(kg)	Length(cm)	Width(cm)	Height(cm)
	5KG	51.7-52.0	11.0-11.2	5.0
	6KG	62.0-63.0	11.0-11.8	5.0
	7.5-8KG	62.0-63.0	11.0-12.0	6.3
	12KG	62.0-63.5	11.0-12.7	9.0
